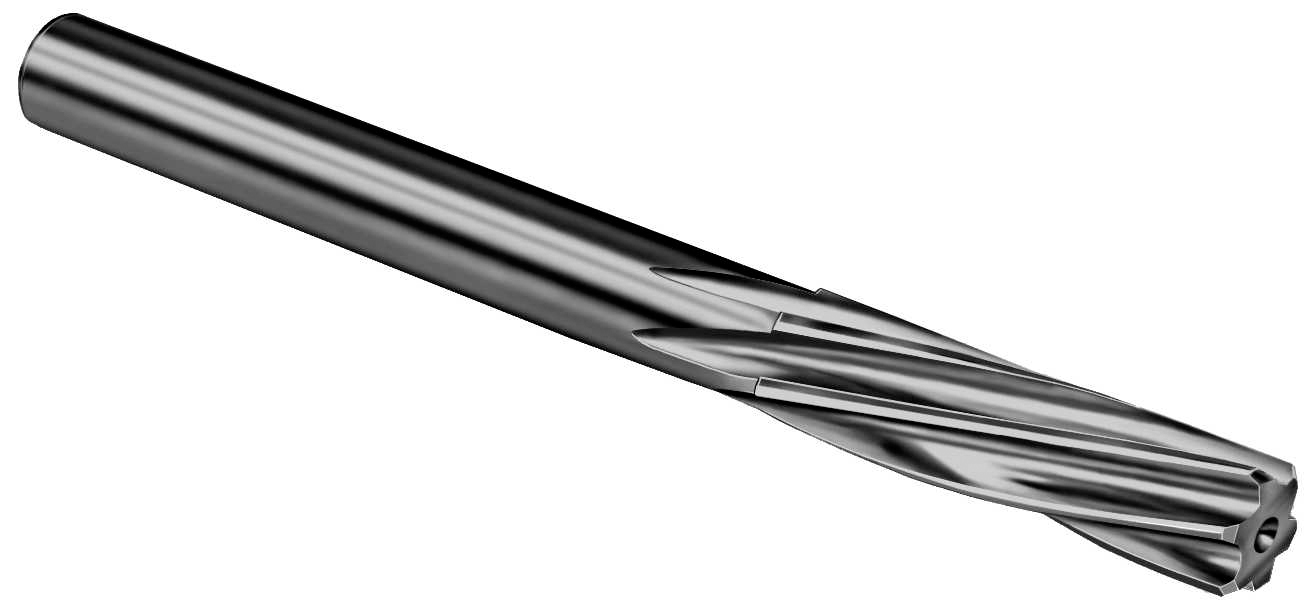

Solid Carbide Left Spiral Flute Chucking Reamer For Non-Ferrous Materials
Description
Spiral flutes ground for reaming holes with interruptions such as keyways, slots, or intersecting holes. Left spiral flutes should not be used on blind holes. Tool diameter tolerance: thru .2500″ +.0002″/-.0000″. Over .2500″: +.0003″/-.0000″. Shank Diameter tolerance: +.0000″/-.0010″.
Additional information
| Tool Diameter Range | 0.1911 – 0.2210 |
|---|---|
| Max Shank Diameter | 0.188 |
| Number of Flutes | 6 |
| Flute Length | 1 |
| Overall Length | 3 |
| Weight | 0.2 lbs |
Decimal Size Pricing - Please Call to Order: 941-465-4088
| Decimal Size Range | 1 PC. | 2 PC. | 3 PC. | 4 PC. | 5-7 PC. | 8-14 PC. | 15+ PC. |
| 0.1911 - 0.2210 | 172.75 | 119.35 | 101.45 | 92.95 | 83.80 | 76.50 | 66.05 |
