$345.47

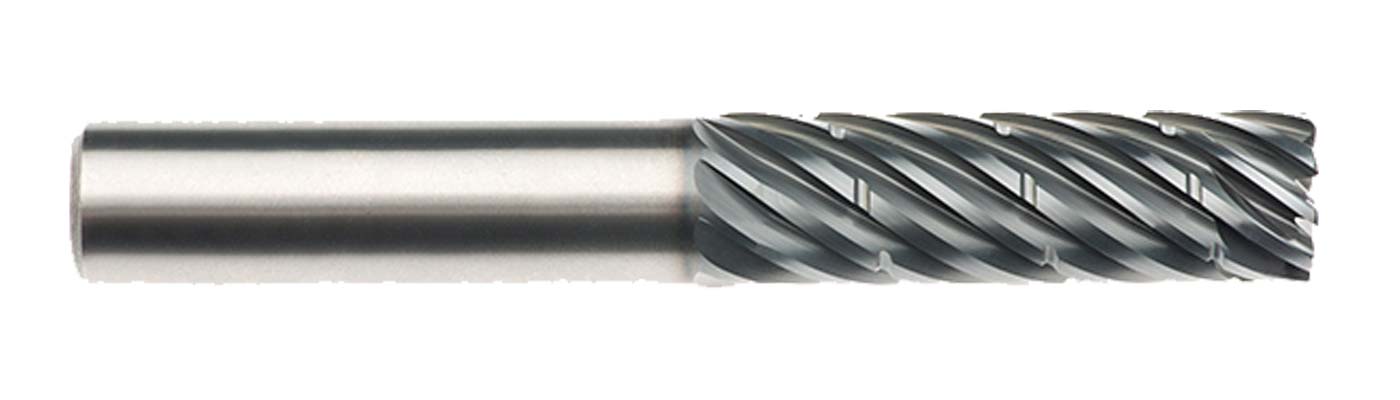

9 Flutes 36° Right Hand Spiral AlCrNX Coated WITH Chip Breakers (CMS Edge)
Description
For high-efficiency machining (HEM) in materials ranging from low carbon steels to hi-temp alloys. Adds the benefits of the unique Chip Management System (CMS) to the versatility of the IPT9 design. Breaks up long, stringy chips, which eliminates recutting chips and chip packing, and allows for deep, free cutting tool movement in a variety of materials.
in: d1: +0.000 / -0.002 d2: -0.0001 / -0.0004
mm: d1: +0.000 / -0.050 d2: -0.0025 / -0.0100
Additional information
| Decimal Diameter | 0.7500 |
|---|---|
| Fractional Diameter | 3/4 in |
| Cutter Radius | 0.125 in |
| Shank Diameter | 3/4 in |
| Number of Flutes | 9 |
| Flute Length | 2-1/4 in |
| Overall Length | 5 in |
| Shank Type | Plain |
| Old Part Number | 63852 |
| Weight | 0.63 lbs |
