$143.83

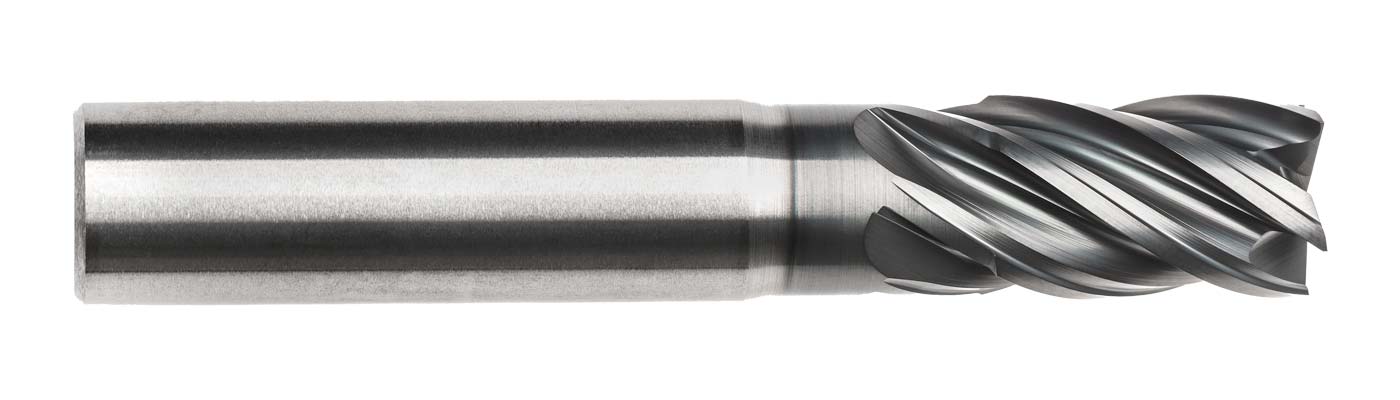

5 Flutes 35° Right Hand Spiral taC Coated Carbide End Mills with Neck Relief
Description
For high-efficiency machining (HEM) in aluminum alloys. Adding a necked shank to the APT5 design offers a highperformance tool that permits clearance in deeper cavities and easier machining against tight walls. Neck relief and short flute length combine to increase end mill stability in the cut for more precise tolerances. Great for work in pockets.
in: d1: -0.0001 / -0.0004 d2: -0.0001 / -0.0004
mm: d1: -0.0025 / -0.0100 d2: -0.0025 / -0.0100
Additional information
| Decimal Diameter | 0.3937 |
|---|---|
| Cutter Radius | 0.500 mm |
| Tool Diameter (mm) | 10 mm |
| Shank Diameter | 10 mm |
| Number of Flutes | 5 |
| Flute Length | 15 mm |
| Overall Length | 100 mm |
| Length Below Shank | 52 mm |
| Shank Type | Plain |
| Old Part Number | 61839 |
| Weight | 0.14 lbs |
