$30.65

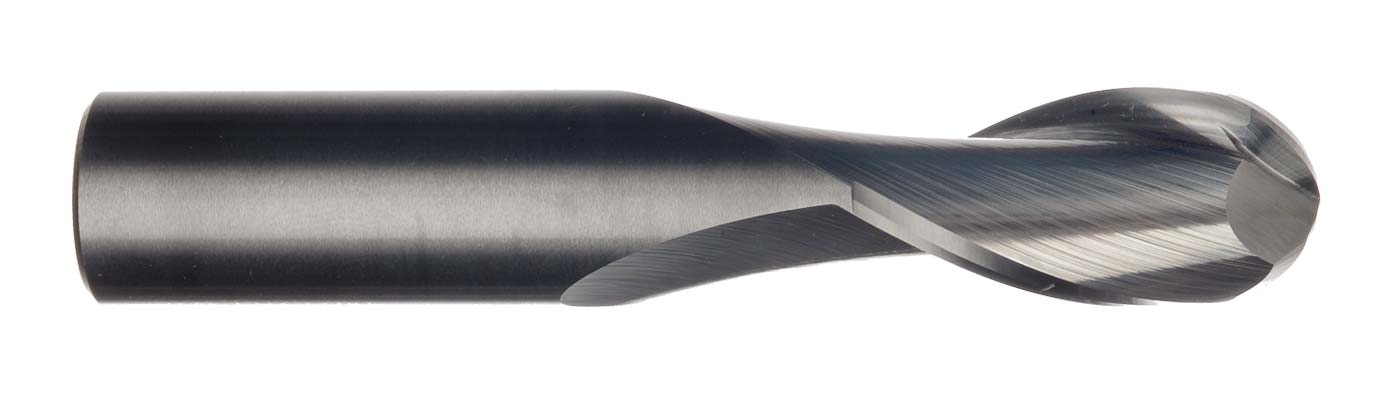

2 Flutes Ball Nose 30° Right Hand Spiral Uncoated Carbide End Mills
Description
For general machining in a wide range of materials. Ball nose design. The E12 offers the maximum flute spacing in a generalpurpose tool design. Best for roughing, slotting, and pocketing in materials and in applications in which chip evacuation is a challenge.
in: d1: +0.000 / -0.002 d2: -0.0001 / -0.0004
mm: d1: +0.000 / -0.050 d2: -0.0025 / -0.0100
Additional information
| Decimal Diameter | 0.2500 |
|---|---|
| Fractional Diameter | 1/4 in |
| Tool Type & Size No. | Ball End |
| Shank Diameter | 1/4 in |
| Number of Flutes | 2 |
| Flute Length | 1-1/8 in |
| Overall Length | 3 in |
| Shank Type | Plain |
| Old Part Number | 37816 |
| Weight | 0.04 lbs |
